Nano T Range - Litron

COMPACT LASERS

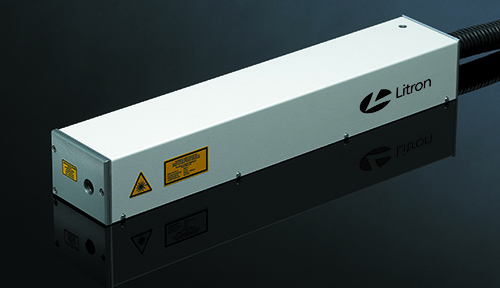

NANO T

Compact and Rugged Lasers with Stable Telescopic Resonators Giving Low Divergence Beams with High Spatial Homogeneity.

The Nano T inherits all of the features of the Nano L combined with the option of having a stable telescopic resonator. This resonator configuration produces a beam with a very low beam divergence.

This is a way of producing a low-divergence beam where the spatial beam profile does not exhibit localised very high peak powers such as those produced in the near field from Gaussian resonators. All this comes from a laser head with a footprint of 500mm x 96mm.

FEATURES

Output Energies up to 290mJ
Stable telescopic resonator
Electronically verified safety shutter
2nd, 3rd, 4th and 5th harmonics
High energy TEMoo option available

APPLICATIONS

LIBS
Spectroscopy
LIDAR
ESPI

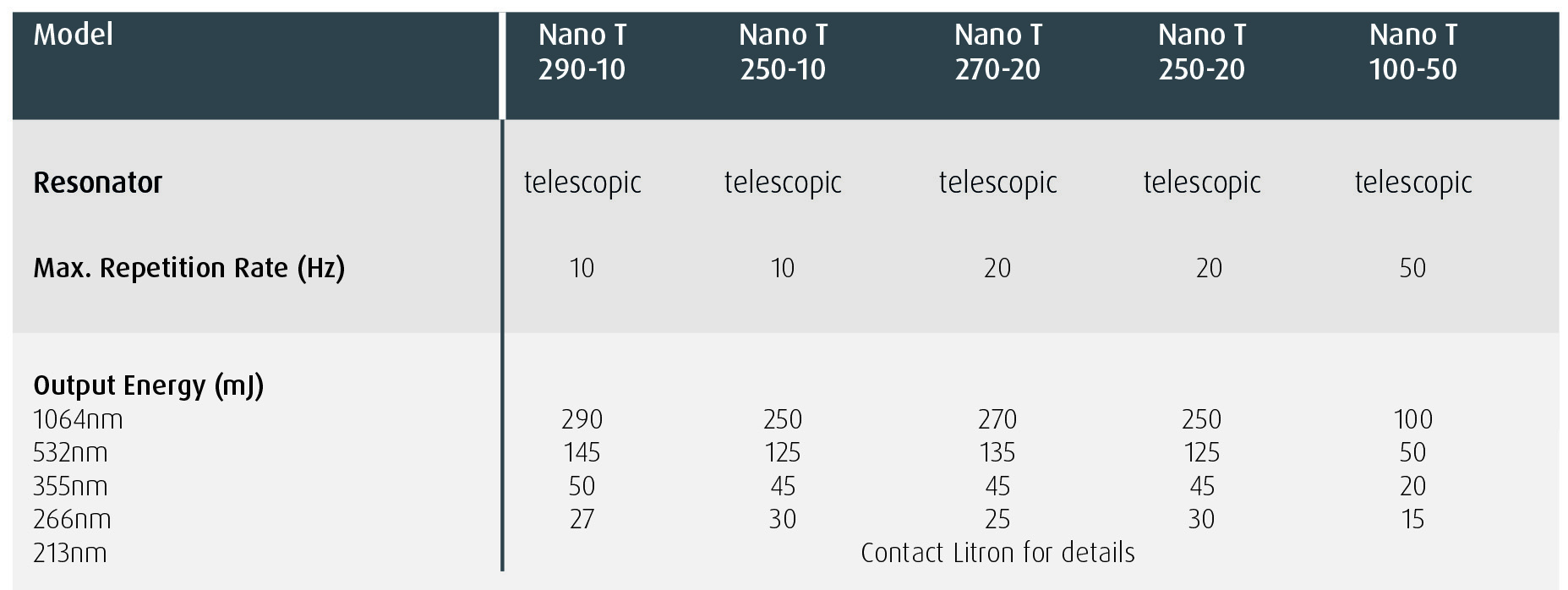

Nano T Specification Highlights

Nano T
Nano T
