FEATURES
High pulse energy – up to 1000mJ at 1064nm
Repetition rates up to 30Hz
Stable telescopic or super-Gaussian resonator
Low profile Invar stabilised rail
Line narrowed versions available
Seeded versions available
Rugged industrial system
APPLICATIONS
LIBS
LIF
Spectroscopy
LIDAR
OPO Pumping
Materials Processing

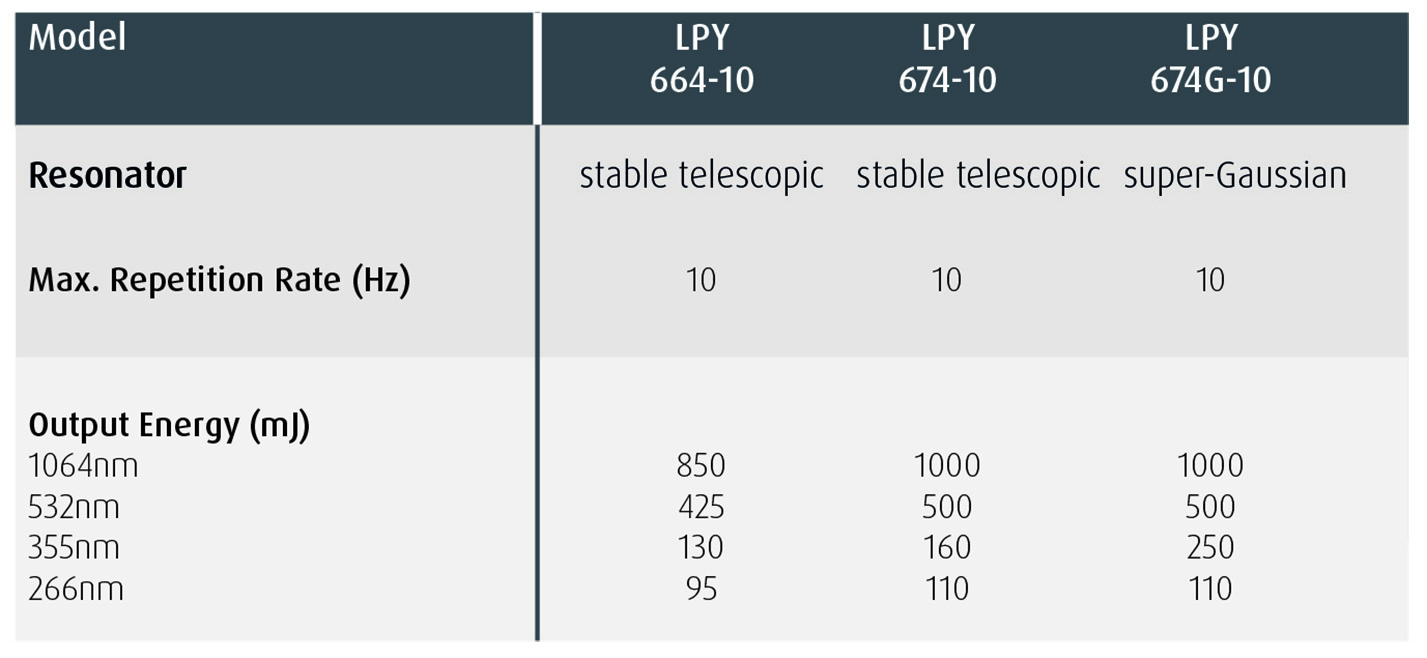

10Hz Super-Gaussian Coupled or Stable Telescopic Pulsed Nd:YAG Lasers
Energies available up to 1000mJ at 1064nm.
Repetition rates up to 10Hz.
Harmonics available: 532nm, 355nm, 266n & 213nm.
Super-Gaussian resonators produce very low-divergence, single transverse mode output beams.
Telescopic resonators produce low-divergence output beams that are spatially smooth in the near field suiting them to a host of pump source applications.

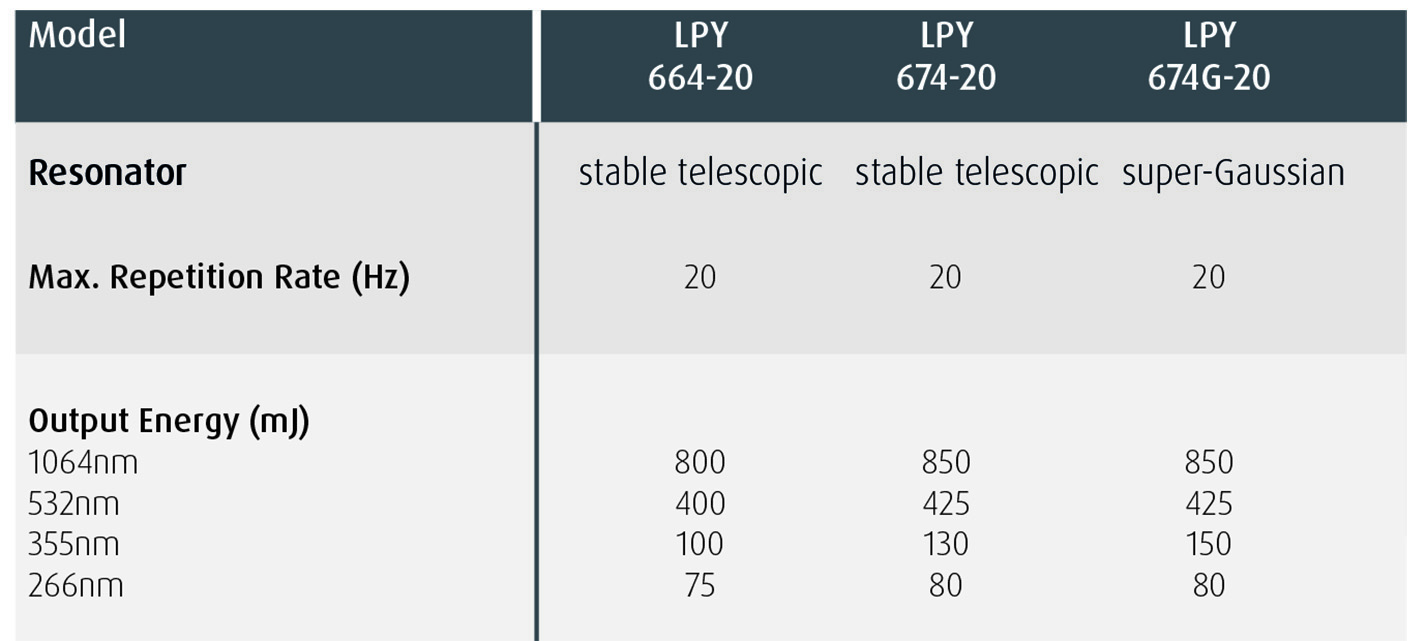

20Hz Super-Gaussian Coupled or Stable Telescopic Pulsed Nd:YAG Lasers
Energies available up to 850mJ at 1064nm.
Repetition rates up to 20Hz.
Harmonics available: 532nm, 355nm, 266nm & 213nm.
Super-Gaussian resonators produce very low-divergence, single transverse mode output beams.
Telescopic resonators produce low-divergence output beams that are spatially smooth in the near field suiting them to a host of pump source applications.
True TEMoo Stable Telescopic Pulsed Nd:YAG Lasers
Energies available up to 350mJ at 1064nm.
Repetition rates up to 30Hz.
Harmonics available: 532nm, 355nm, 266nm & 213nm.
High energy true TEMoo outputs are obtained by means of an intra-cavity aperture behind the telescope within a telescopic resonator. The output beams from such systems typically have divergences that are within 15% of the diffraction limit. These systems therefore have output beams that are super-Gaussian in both the near field and far field.
