LD60-532 PIV - Litron

LASERS FOR PIV

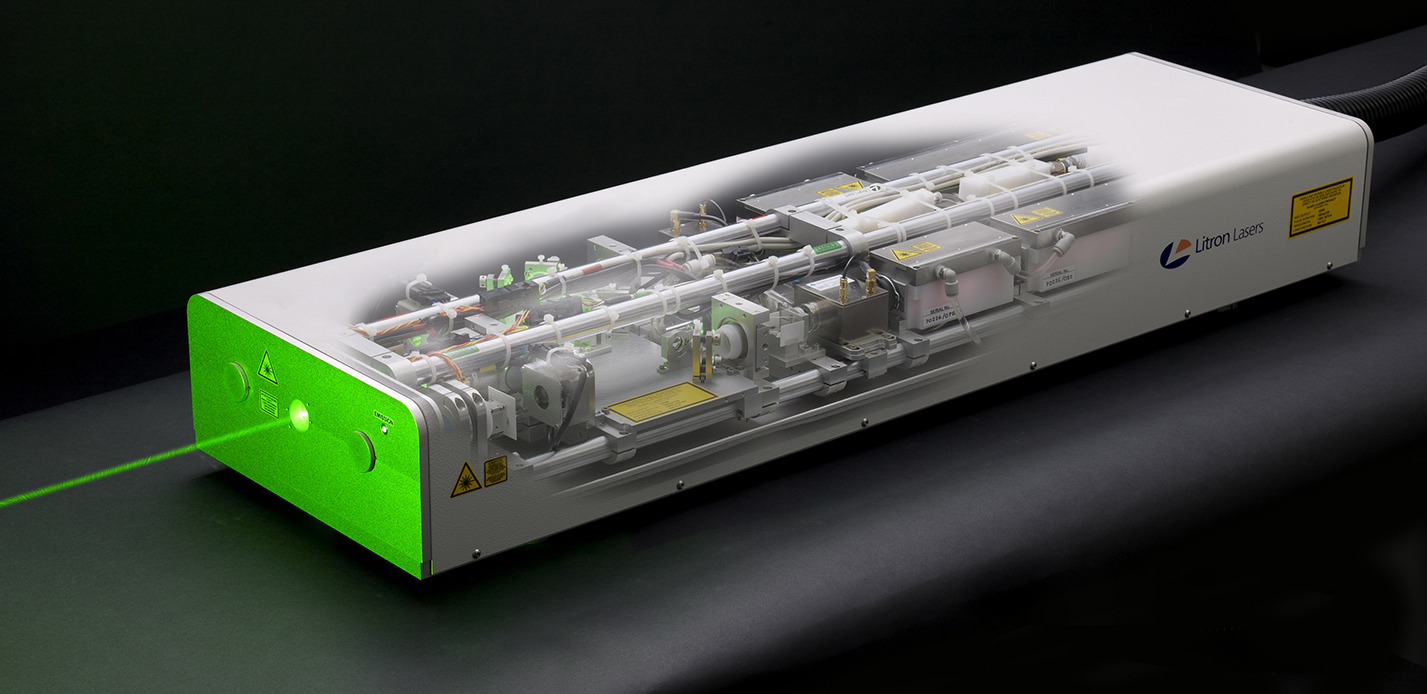

LD60-532 PIV

High Repetition Rate DPSS Nd:YAG Laser for Time-Resolved PIV Applications

DATA SHEET

The LD60-532 PIV is a dual laser head system ideal for PIV applications. The system comprises two fully independent intracavity-doubled DPSS Nd:YAG lasers, each giving outputs of 60W at 532nm, that are combined to a common beam axis. Both lasers are independently triggerable and controllable.

The Invar rail around which the system is constructed imparts exceptional stability and the sealed head enclosure ensures continuous reliable operation in non-ideal environments. The power supplies and chiller are fully integrated in a single unit.

With no services except the mains electrical input the LD60-532 PIV is a standalone turnkey system with an output suited to many time resolved PIV applications.

Product Range

FEATURES

6mJ at 10kHz per laser head
8mJ at 6kHz per laser head
Repetition rates of 50kHz with individual pulses
<0.5% RMS stability
Fully independent operation and timing
Circular beam profile
Optimised for high brightness light-sheets

SYSTEM BENEFITS INCLUDE

120W total output at 532nm at 20kHz or 10kHz
Industrially stable Invar rail
Fully integrated power supply and chiller
RS232 interface with GUI software included
Ruggedised laser head for harsh environments

APPLICATIONS

PIV
Time-Resolved PIV
Particle Sizing
Ti:Sa Pumping
Combustion Analysis
LIF
LIDAR
Spectroscopy

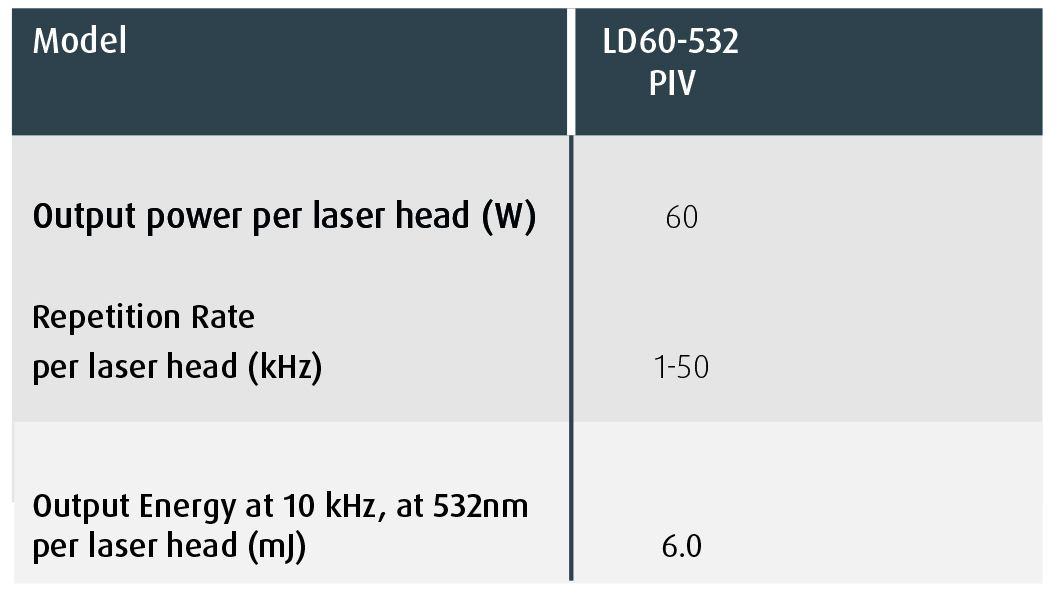

LD60-532 PIV Specification Highlights

LD60-532 PIV Specification Highlights
